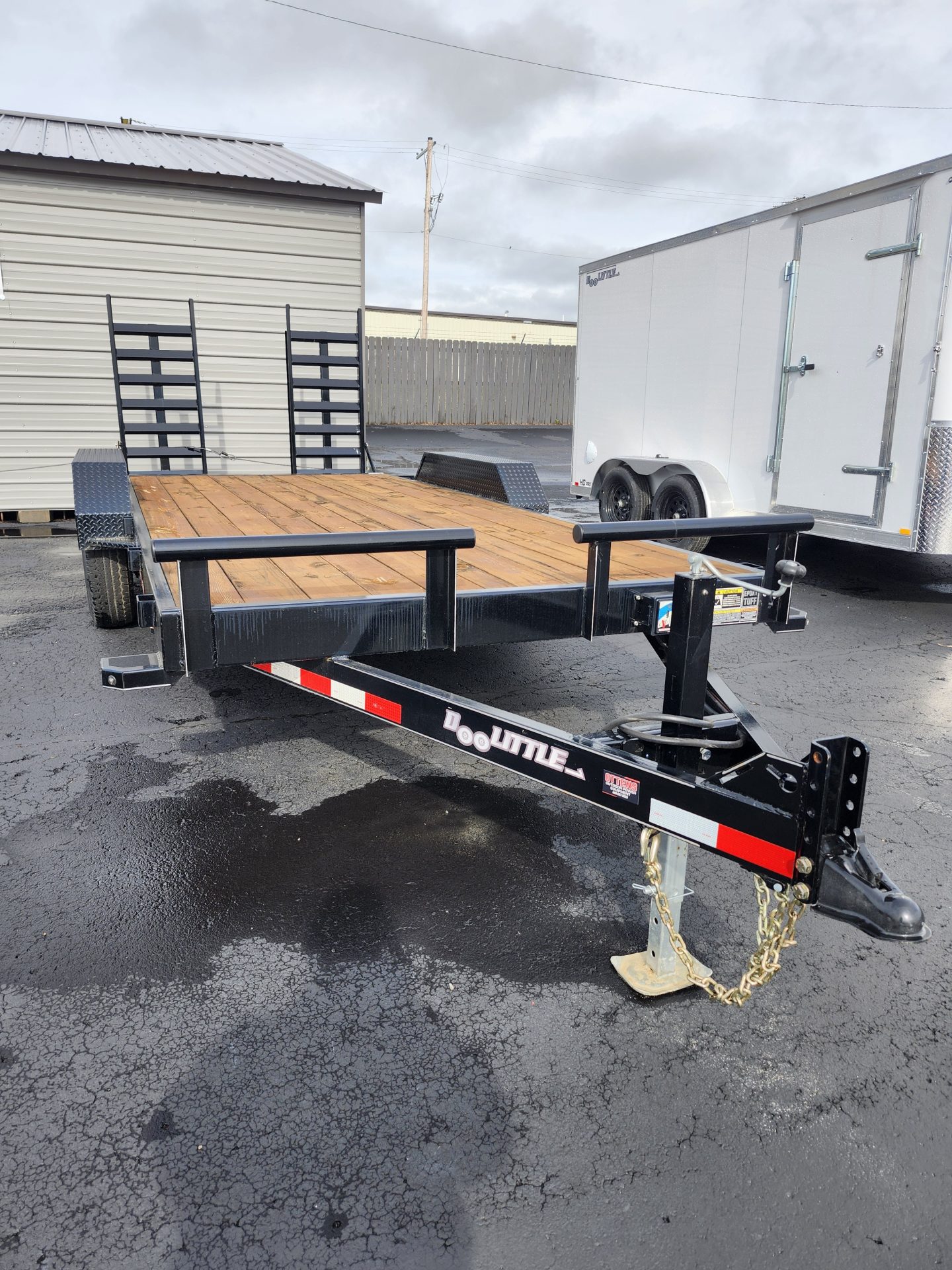

DooLittle Trailers CF821814K Channel Flatbed Equipment Trailer

DooLittle Trailers CF821814K Channel Flatbed Equipment Trailer

SKU/Model: CF821814K

The heavy-duty DooLittle Trailers CF821814K is a professional-grade Channel Flatbed (CF Series) Equipment Trailer engineered to strike the ultimate balance between structural rigidity and optimized payload weight. Boasting an expansive 84-inch deck width between the heavy-duty treadplate fenders, a 16-foot flat deck, and a integrated 2-foot wood dovetail, this 18-foot trailer is perfectly optimized for transporting serious industrial and agricultural machinery. It confidently handles demanding equipment including skid steers, mini-excavators, trenchers, full-size UTVs, and work vehicles.

At the center of this commercial machine is a massive 6-inch wrapped channel tongue that pairs directly with 3-inch structural channel crossmembers spaced tightly at 16 inches on-center. This design delivers absolute structural integrity, keeping the frame flat and true under punishing, localized axle loads. Operators can load heavy, low-clearance equipment with supreme ease thanks to the gradual incline provided by the 2-foot wood dovetail paired with the industry-leading 5-foot heavy-duty stand-up ramps featuring reliable spring assistance.

This premium commercial configuration features dual 7,000 lb. axles to deliver a true 14,000 lbs. gross vehicle weight rating (GVWR). It relies on a heavy-duty commercial-grade slipper spring suspension to absorb extreme highway shocks and demanding job site terrain. Complete with a zinc-cast adjustable 2 5/16″ coupler, five robust stake pockets per side for infinite tie-down configurations, a molded 7-way RV electrical plug, and a premium 2-component Epoxy Tuff automotive paint finish, the CF821814K represents an invaluable asset for serious independent contractors, land clearers, and transport fleets.

Key Features & Performance Benefits

• 6″ Wrapped Channel Tongue: Maximizes front-end rigidity and towing safety when transporting heavy industrial loads.
• 16″ O.C. Crossmembers: Upgraded 3″ structural channel spacing designed specifically to withstand the concentrated weight of heavy steel tracks and tires.
• 2′ Wood Dovetail: Features premium 2″ treated yellow pine that extends to the trailing edge for smooth transitions and reduced loading angles.
• Stand-Up Spring-Assist Ramps: Commercial grade 5-foot loading ramps that significantly decrease manual lifting strain and expedite site setups.
• EZ Lube Hubs: Simplifies routine maintenance by allowing rapid, even wheel bearing lubrication without tedious hub disassembly.
• Slipper Spring Suspension: High-capacity commercial suspension system providing superior axle articulation and trailer dampening under full load.

Technical Specifications
